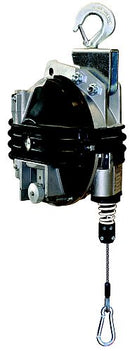

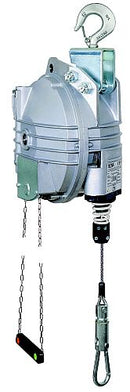

Zero Gravity Spring balancers - Type 9431-9436 (15 - 60kg) 3000mm stroke

SKU: 9431

Price:
Sale price£0.00
Stock:
Request a quote

Description

Features & Technical data

  • SIMBAL 'Zero Gravity' Spring Balancers (also known as Tool Balancers) are suitable for an infinite range of applications across most industries and installation and construction sites. Zero gravity balancers are designed to allow the operator to easily move the load without feeling the weight and to maintain the load in position when released. This range of large, heavy duty balancers include the following features :
  • * 15 - 60kg capacity / 3000mm stroke
  • * Safety device to prevent load falling in event of spring failure
  • * Locking device for clamp / release at any height
  • * Taper drum on ball bearings
  • * Ribbed block construction cast aluminium body
  • * Adjustable capacity by worm screw
  • * Precision guided winding prevents jamming
  • * Adjustable stroke limiting device
  • * Rotary safety hooks top & bottom
  • * Auxiliary safety cable
  • * Stainless Steel Cable
  • * Optional - Locking device for floor control (shown on image)
  • * Optional - Load hook with ball bearing svivel
  • * Optional - Rubber casing protection (Type 'G')
